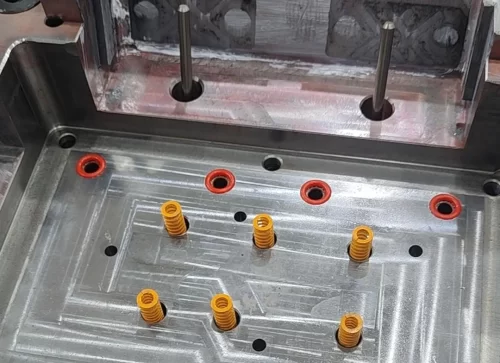

Injection Molding Process Parameters: Complete Guide to Temperature, Pressure, Speed, Time & Position Control

Experienced injection molding technicians all know this: the mold sets the foundation, the material determines the properties, and the process determines the yield rate.

For the vast majority of injection molding defects—such as shrinkage, flash, bubbles, scorching, weld lines, warping, and white marks—we find that over 90% are not caused by inherent mold defects but instead result from improper parameter settings.

Many beginners approach machine tuning by “blindly increasing pressure or randomly adjusting temperatures,” relying on intuition to test molds.

Not only does this fail to solve problems, but it also risks introducing new defects, prolonging production cycles, and increasing material waste.

There are only five core process parameters in injection molding: temperature, pressure, speed, time, and position.

All machine tuning operations involve a precise interplay of these five parameters.

Today, drawing on twenty years of hands-on shop floor experience, I will break down the underlying logic, standard value ranges, adjustment priorities, and corresponding defect solutions for each parameter from the ground up.

Beginners can apply this knowledge immediately, while seasoned operators can use it to standardize and solidify their processes.

Temperature Parameters: The Foundation of Plasticization, Determining the Basic State of the Melt

Temperature is the prerequisite for all other parameters; if the temperature is incorrect, adjusting pressure and speed will be ineffective.

The core function of temperature is to ensure that plastic particles melt uniformly and achieve optimal flowability, while preventing decomposition at high temperatures and caking at low temperatures.

Engineers divide the injection molding temperature system into four major components:

Barrel zone temperatures, nozzle temperature, mold temperature, and drying temperature, all of which work in tandem.

• Barrel Zone Temperatures (The Most Critical Plastification Temperature)

The barrel employs a four-zone temperature ramping logic: feed zone → compression zone → homogenization zone → pre-nozzle zone.

This strictly follows the “high front, low rear” principle to prevent bridging during feeding and inadequate plastification in the front section.

Feed Zone (Rear Section): The lowest temperature, used solely to preheat the material and prevent melted particles from sticking to the hopper opening, which could cause feeding failure, bridging, or blockages;

Compression Zone (Middle Section): The critical heating zone where plastic begins to melt under shear forces; this is the core section of the plasticization process;

Homogenization Zone (Front Section): The highest temperature, ensuring uniform melt consistency and flowability while eliminating localized raw material or granules;

Pre-nozzle Section: We connect this section to the mold; we slightly reduce the temperature to prevent drooling and cold material from entering the cavity.

• Standard Temperatures for Common Materials (General Workshop Reference)

General-Purpose Plastics: ABS 180–220°C, PP 190–230°C, PE 170–210°C, PS 180–210°C

Engineering Plastics: PC 250–300°C, PA6 220–260°C, PA66 240–280°C, POM 180–210°C, PBT 220–260°C

• Key Points for Machine Setup

For products with poor flowability, thin walls, or long flow paths, appropriately increase the front-end temperature to improve filling flow;

Manufacturers must not expose heat-sensitive materials (POM, PVC, flame-retardant ABS) to high temperatures.

Excessive heat can cause decomposition, yellowing, smoke generation, and brittle cracking of the product;

Glass-fiber reinforced materials require moderate temperature increases to ensure uniform fusion of the glass fibers with the plastic, preventing fiber floating and surface mottling.

• Nozzle Temperature

The nozzle temperature should fall between the front section of the barrel and the mold temperature, ideally 10–20°C lower than the front section.

Excessively high temperature: Melt drips during machine shutdown or material storage, causing drooling and cold spots;

Black spots and plastic pellets appear on the product surface;

Excessively low temperature: Melt cools and solidifies at the nozzle tip, causing nozzle blockage and material breakage, leading to material shortages and short shots.

• Mold Temperature (Determines product appearance and internal stress)

Mold temperature does not directly affect filling speed, but it determines product gloss, surface smoothness, internal stress, and demolding results, making it a critical parameter for high-end products.

Low mold temperature (cooled by chiller): Short molding cycle and high output; the drawback is rapid melt cooling, which can cause weld lines, high internal stress, and warping or deformation later on.

Suitable for ordinary daily necessities and products with no specific appearance requirements;

High mold temperature (heated by a mold temperature controller):

The melt cools slowly, resulting in better filling and fusion.

This yields high product gloss, reduced weld lines, dimensional stability, and low internal stress.

The drawbacks are a longer cooling cycle and lower output.

Suitable for appearance parts, transparent parts, and precision structural components.

Practical tip: Increase mold temperature for appearance parts, lower it for mass-produced parts, and maintain a stable temperature for precision parts

• Raw Material Drying Temperature

A critical temperature that is easily overlooked! When plastic raw materials absorb moisture, high-temperature melting causes the water vapor to vaporize, leading to bubbles, silver streaks, and shrinkage voids.

ABS: 70–80°C, dry for 2–4 hours

PC: 100–120°C, dry for 4–6 hours

PA/PA66: 90–110°C, dry for 3–5 hours

PBT: 120–140°C, dry for 3 hours

Pressure Parameters: The Driving Force of Molding, Determining Product Fullness and Precision

Pressure is the driving force behind melt flow.

The four core pressures of an injection molding machine—injection pressure, holding pressure, back pressure, and clamping pressure—each serve a specific function and must never be interchanged or adjusted indiscriminately.

• Injection Pressure (Filling Pressure)

Function: Overcomes resistance in the mold’s runner and cavity to rapidly fill the mold cavity with melt.

Setting Logic: High pressure for thin-walled parts, low pressure for thick-walled parts;

The higher the length-to-diameter ratio, the higher the pressure requirement.

Standard for Conventional Products: 80–120 bar

Thin-walled, slender, or complex-structured products: 120–160 bar

Thick-walled or simple, large-sized products: 60–90 bar

• Common Issues and Solutions

Pressure too low: Insufficient filling power, material shortage, short shots, and incomplete cavity filling;

Pressure too high: Excessive melt impact force causes instantaneous mold expansion, resulting in flash, flash marks, excessive internal stress in the product, and deformation during demolding.

• Holding Pressure (Core of Shaping and Shrinkage Compensation)

80% of shrinkage and sink marks are caused by improper holding pressure settings!

After filling is complete, the melt begins to cool and contract, reducing in volume.

The core function of holding pressure is to continuously replenish material into the cavity, counteracting cooling shrinkage and stabilizing product dimensions.

Industry standard range: 30%–70% of injection pressure

Thick-walled products or areas prone to shrinkage on visible surfaces:

Use a medium-to-high hold pressure (50%–70%) to ensure adequate shrinkage compensation;

Thin-walled products or products prone to flash: Use a low hold pressure (30%–40%) to prevent flash and mold sticking.

• Practical Pitfalls

Excessive holding pressure: Stress concentration at the gate, whitening, cracking, demolding damage, and longer cycle times;

Insufficient holding pressure: Surface sink marks, internal voids, undersized parts, and loose assembly.

• Back Pressure (Key to Uniform Plasticization)

Back pressure is the counter-pressure applied when the screw retracts after material accumulation.

It is often overlooked by beginners but has a significant impact on product quality.

• Core Functions

Compresses the melt and expels air from the material to eliminate bubbles and voids;

Ensures thorough plastic shearing, uniform melting, consistent color, and no streaking;

Prevents excessive screw accumulation and uneven mixing.

• Standard Values

General-purpose plastics: 5–15 bar

Color masterbatch blending, transparent parts, precision parts: 15–25 bar

Glass-fiber reinforced materials, flame-retardant materials:

Should not be set too high to prevent material burning due to high-temperature shear and glass fiber breakage.

• Defects and Causes

Back pressure too low: Uneven plasticization, product color mixing, internal bubbles, surface mottling;

Back pressure too high: Slower material accumulation, abnormal rise in material temperature, raw material decomposition and yellowing, increased equipment wear.

• Clamping Pressure (Clamping Force)

Function: Clamps the mold shut, counteracts cavity tension caused by injection and holding pressure, and prevents the mold parting line from opening.

Selection Principle: Calculated based on the product’s projected area; err on the side of excess rather than deficiency;

High-pressure injection with insufficient clamping force is strictly prohibited.

Insufficient clamping force: 100% flash, flash on the parting line, and burrs on the product;

Excessive clamping force: Mold deformation under pressure, wear on guide pins, and damage to the platen, shortening mold life.

Speed Parameters: Injection Rhythm—The Key to Resolving Surface Defects

Temperature and pressure set the foundation; speed determines the surface finish.

The vast majority of weld lines, spatter marks, air marks, and scorching are all related to excessive injection speed and irregular injection rhythm.

Speed parameters include: injection speed, packing speed, mold opening/closing speed, and ejection speed.

Among these, segmented injection speed is the essence of machine tuning.

• Segmented Injection Speed (The Top Priority)

The complete filling process is divided into four stages and must follow a “slow—fast—slow—gentle” rhythm; avoid maintaining high or low speeds throughout the entire process.

1). Gate-to-cavity section: Low speed

Prevents the melt from impacting the mold walls at high speed, which can cause spatter marks, gate marks, and surface defects, while also preventing cold material from entering the cavity;

2). Main runner and cavity section: Medium to high speed

Rapidly fills the cavity, shortens filling time, and prevents premature cooling of the melt, which can lead to cold material and weld lines;

3). Cavity End Merging Section: Medium Speed

Ensure smooth merging of the melt to reduce the depth of the weld line;

4). Final Sealing Section: Extremely Low Speed

Vent and stabilize pressure to prevent gas entrapment, scorching, flash at the end, and dimensional deviations.

5). Practical Summary

High Speed: Used for long runs, thin walls, and simple cavities to address short shots and cold material;

Low Speed: Used for surface areas, gate locations, and end venting points to address gas marks, spatter marks, and scorching.

• Material Feeding Speed

Use in conjunction with back pressure: high back pressure should be paired with low material feeding speed, and low back pressure with medium material feeding speed.

Excessively fast material feeding: uneven mixing, poor venting, and the formation of bubbles;

Excessively slow material feeding: extended production cycles and reduced output.

• Mold Opening/Closing and Ejection Speeds

General Principle: Fast approach, slow stop

Mold opening/closing: Operate at high speed, then decelerate as the mold approaches the closed/open position to prevent mold collisions, vibrations, and misalignment;

Ejection speed: Maintain a low, constant speed throughout the entire process; excessive speed will inevitably cause white marks, cracks, and product deformation.

Time Parameters: Stable Production and Standardized Curing Processes

All parameters require time to take effect; time parameters are essential for stable mass production.

They primarily include: injection time, holding pressure time, cooling time, and delay time.

• Injection Time

Match the injection speed to ensure complete filling of the mold with molten material.

If injection time is too short: high-speed filling can lead to trapped air and flash;

If injection time is too long: cycle times increase, resulting in low efficiency.

• Holding Time (Critical for Gate Sealing)

The end point of holding pressure: complete cooling and solidification of the gate.

Insufficient holding time: The gate does not seal, causing melt to flow back into the cavity, resulting in product shrinkage and undersized parts;

Excessive holding time: Stress concentration at the gate leads to whitening and cracking, without any improvement in quality, and only wastes production capacity.

Simple determination method: Gradually increase the holding pressure time until the product’s dimensions and weight no longer change; this is the optimal holding pressure time.

• Cooling Time (Largest portion of the cycle)

Cooling time determines production efficiency, accounting for over 60% of the total molding cycle.

Core principle: Ensure the product is fully set, free from deformation, and does not stick to the mold; avoid overcooling.

Thick-walled products and complex parts: Extend cooling to prevent deformation and warping during demolding;

Thin-walled, simple parts: Shorten cooling time to increase mass production speed.

Common misconception: Many operators blindly extend cooling time to ensure stable production, which directly halves output—a completely counterproductive approach.

• Delay/Dwell Time

Injection delay and venting delay are primarily used to address air entrapment in deep cavities and dead corners, allowing time for air to escape from the cavity and preventing scorching or short shots

Position Parameters: The Key to Precise Control and Fine-Tuning

Position parameters serve as the “switch thresholds” for all movements.

They control the travel positions of the screw, platen, and ejector pins to enable precise switching between motion segments, marking the dividing line between standard machine setup and fine-tuning.

Core Positions: Injection segment positions, hold pressure switch positions, material storage termination positions, mold opening/closing positions, and ejector travel.

• Hold Pressure Switching Position (V/P Switch)

The most critical position parameter!

This refers to the position at which the screw advances, switching from “injection pressure/speed mode” to “hold pressure mode.”

Switching too early: The cavity is not fully filled, and hold pressure is applied prematurely, leading to short shots and shrinkage;

Switching too late: Overfilling occurs, causing excessive cavity pressure, flash, mold bulging, and excessive internal stress.

•  Injection Stage Position

Precisely defines the speed transition points for the gate section, cavity section, and end section to specifically address localized surface defects.

For example: To eliminate air marks at the product’s end, simply decelerate earlier at the end position without modifying overall parameters.

• Material Reserve Termination Point

Determine the material reserve for each injection cycle, allowing for a reasonable buffer to prevent underfilling and measurement inaccuracies, ensuring consistent product weight and stable quality for every mold.

The Core Logic of Coordinated Adjustment of the Five Key Parameters (Summarized by a Master Technician)

• Adjustment Sequence

Set the temperature first, then the pressure, followed by the speed, and finally the clamping time and position.

Beginners must strictly follow this sequence: temperature ensures proper plasticization, pressure ensures full filling, speed optimizes the appearance, and time and position ensure stable mass production.

• Principle of Prioritizing Defect Correction

Shrinkage, voids, dimensional instability → Prioritize adjusting holding pressure, cooling, and mold temperature

Flash, flash marks → Prioritize reducing pressure, reducing speed, and increasing clamping force

Air marks, scorching, bubbles → Prioritize adjusting back pressure, injection speed, venting, and drying

Prominent weld lines → Prioritize increasing temperature, adjusting injection speed, and raising mold temperature

White spots, warping → Prioritize adjusting cooling, ejection speed, and reducing internal stress

• Make Minor Adjustments, Not Major Ones

During mass production, drastically changing parameters is strictly prohibited.

Make minor adjustments of 5%–10% at a time, observe stability for 20–30 cycles, and then finalize the settings to avoid batch defects.

Conclusion: The Ultimate Core of Process Parameters

There are no fixed, one-size-fits-all parameters in injection molding; all high-quality processes are the optimal combination tailored to the mold, raw materials, and product structure.

Truly experienced machine technicians do not rely on rigid parameters, but on logic:

They understand the properties of the raw materials, master the mold’s venting, and flexibly adjust the five key parameters—temperature, pressure, speed, time, and position—based on the product structure.

Standardized parameters form the foundation, fine-tuning is the core, and achieving stable, consistent results is the key to mass production.

Updates to follow: Material-specific process parameter tables, one-on-one machine tuning solutions for common defects, and standardized mass production processes for precision parts.
