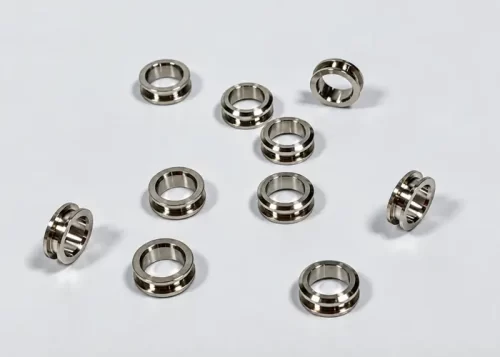

Hybrid manufacturing technologies are gradually emerging as an effective bridge between manufacturing precision and design freedom.

Engineers integrate many manufacturing processes. This integration optimizes these processes.

It also promotes in-depth innovation. The innovation covers macro system architecture down to micro material behavior.

In this process, traditional and novel manufacturing processes collide and converge, and hybrid process innovation is expected to enhance the overall quality of micro-part machining.

As core technologies in the current field of micro-part machining, CNC micro-milling and 3D printing require technological synergy to drive process innovation.

Engineers integrate equipment and coordinate machining parameter optimization. They provide micro-part manufacturing solutions.

These solutions fit many high-precision, cutting-edge fields. They expand the breadth and depth of micro-part applications in emerging sectors.

CNC Micro-Milling and 3D Printing Technologies in Micro-Part Machining

  • CNCMicro-Milling Technology

As market demands for product quality and production efficiency continue to rise, traditional machining methods are no longer sufficient to meet the needs of complex parts and small-batch production.

As a core technology applied in the machining of micro-parts, CNC micro-milling combines micrometer-scale cutting tools with high-speed bearings, offering the following technical advantages and characteristics:

1. High Precision

CNC micro-milling technology enables the machining of micro-parts with a tolerance of ±0.5 μm, making it suitable for high-precision components such as aerospace turbine blades and biomedical implants.

2. Flexibility

Operators run CNC micro-milling. It enables multi-axis simultaneous movement during machining.

This capability machines complex planar and curved surfaces.

For example, fabricators produce microfluidic chips and micro-gears with high precision.

Operators use five-axis simultaneous machining. They machine target materials directly at any angle.

This greatly reduces workpiece clamping operations. It further improves machining stability.

When machining free-form surfaces with continuously varying curvature, precise CNC control over the tool’s orientation helps achieve superior surface quality; third, wide material compatibility.

Operators use CNC micro-milling to machine hard materials such as metals and ceramics directly.

They pair this technique with specialized tool coatings and low-temperature coolant technology.

This combination handles machining tasks for materials with low thermal conductivity and high hardness.

However, the process of machining micro-parts using CNC micro-milling technology also presents several technical challenges.

First is vibration suppression: the small contact area between the tool and the workpiece during milling causes vibrations between the two;

Combined with low-frequency vibrations from the machine tool and the workshop floor, this can easily affect the surface quality of the parts. Second is tool wear.

Tool management and automatic tool-changing technologies help operators swap tools quickly.

These technologies still carry limitations. They cannot handle tool life management and toolpath optimization well.

These shortcomings accelerate tool wear. They also lengthen machining time.

  • 3DPrintingTechnology

1. Main Categories and Typical Characteristics of 3D Printing Processes

Additive manufacturing forms the core of 3D printed mold production.

Engineers start with a 3D digital model. They use methods such as extrusion, sintering, melting, photopolymerization, and jetting.

These techniques deposit material layer by layer. Operators finally obtain three-dimensional structural parts.

3D printing technology encompasses a variety of applications, primarily including:

Fused Deposition Modeling (FDM) delivers relatively low overall costs.

Researchers often use it to validate 3D‑printed target models, although it provides lower accuracy (0.1 mm).

Stereolithography (SLA), which typically uses ultraviolet light to directly cure liquid resin.

This technology produces models with high surface quality and a surface roughness of Ra < 1 μm, and researchers widely apply it in the biomedical field.

For example, dental models produced using SLA technology can achieve an overall accuracy of ±0.5 mm, fully meeting clinical accuracy requirements;

Selective Laser Melting (SLM) uses an ultra-high-temperature laser to melt metal powder, enabling the direct fabrication of micro-metal parts.

Parts produced by this process exhibit extremely high strength, approaching the average strength of forged parts.

For example, titanium alloy scaffolds produced using SLM technology can have their porosity strictly controlled to within 70%, meeting the precision requirements for biological bone tissue.

2. Core Advantages of 3D Printing in Micro-Part Manufacturing

From the perspective of micro-part manufacturing, 3D printing technology offers multiple advantages.

First, it enables the integrated fabrication of complex structures;

Engineers use 3D printing to form the target part structure directly.

This topology-optimized method lowers the difficulty of fabricating additive structures. It also effectively extends the functional limits of micro-parts.

Second, it offers high material utilization. 3D printing of micro-part models significantly reduces scrap rates.

Operators use subtractive CNC micro-milling. This method achieves roughly 40% material utilization. 3D printing behaves differently.

It only produces a small amount of waste, mostly unfused powder.

This characteristic saves considerable costs when operators machine expensive materials.

3. Existing Technical Bottlenecks of Current 3D Printing Technology

Although current 3D printing technology holds broad application prospects in the machining of micro-parts, it still faces several technical bottlenecks.

First, the precision of part models is insufficient; the occurrence of spheroidization and powder agglomeration during the 3D printing process can easily affect the surface quality of the part models.

For example, part models printed using SLM technology have high surface roughness and typically cannot meet the requirements of precision-fitting applications.

Second, there are limitations in material performance;

Some materials produced via 3D printing technology have mechanical properties that are slightly inferior to those of materials produced through traditional manufacturing methods.

For example, the tensile strength of micro-parts produced using SLA technology is approximately 50 MPa, and there is significant variability in this property.

Innovative Hybrid Process Combining CNC Micro-Milling and 3D Printing in Micro-Part Machining

  • Process Integration and End-to-End Optimization

The authors planned and developed a digital process chain.

They deeply optimized the integration of CNC micro-milling and 3D printing technologies. They improved the manufacturing process for micro-parts.

Researchers conduct coupled prediction and compensation through multiphysics simulation.

They use dedicated additive manufacturing simulation software. The software accurately predicts key parameters.

These parameters include part deformation coefficients, thermal stress distribution, and melt pool evolution.

They complete these predictions before printing finishes.

For example, during the printing of a micro motion controller, simulation predictions reveal that a specific area will warp inward by 0.08 mm due to thermal contraction.

The digital system will then apply a 0.08 mm compensation to the contour of that specific area based on the target part’s characteristics, thereby ensuring the final part meets the correct dimensional specifications.

Engineers adopt the “feature recognition—zone-based layering” processing strategy.

The strategy automatically analyzes the target part model. It thoroughly identifies different geometric features of the model.

Engineers use these identified features as the foundation. They develop a composite machining strategy for the micro-part.

For example, during the machining of the part’s assembly reference surfaces and support surfaces, the system automatically identifies these zones and sets a lower print layer thickness for them.

Engineers use heat input from printing to carry out in-situ annealing. This operation effectively reduces residual stress.

Operators then perform finishing with CNC micro-milling. This helps the part meet the strict surface roughness requirement of Ra ≤ 0.1–0.2 μm.

Furthermore, operators should adopt more efficient printing strategies when fabricating complex porous structures.

Technicians use ultrasonic tools to clean the internal cavities of specific areas, effectively eliminating the cleaning blind spots found in traditional processes.

Overall, the adoption of the “additive manufacturing–finishing–high-efficiency forming” strategy achieves a perfect balance between local process precision and end-to-end efficiency.

  • High Integration of High-Dynamic Compensation and Closed-Loop Monitoring Systems

The high integration of high-dynamic compensation and closed-loop monitoring systems is a key factor in driving innovation in micro-part machining processes.

By establishing a closed-loop system comprising “operating condition sensing — process diagnostics — real-time control,” a “cockpit” for the integrated manufacturing of micro-parts is created.

1. Operating Condition Sensing: Multi-Sensor Fusion for In-Situ Signal Acquisition

At the operating condition sensing level, a sensor information fusion platform is used to perform online fitting of sensor data;

Operators use highly sensitive probes. These probes dynamically compensate geometric errors of CNC machine tools.

They apply white-light focusing sensors. The sensors conduct 3D scanning on milled surfaces and printed layers of parts.

Operators acquire 3D roughness parameters for target components.

They deploy acoustic emission sensors. These sensors accurately capture changes in the part’s signal spectrum.

The system detects tool chipping early during CNC micro-milling. It also identifies internal cracks inside 3D-printed models.

High-temperature thermometers and thermal imagers are used to monitor heat accumulation in the milling zone and the printed melt pool in real time.

2. Process Diagnostics: Digital Twin-Based State Prediction and Pre-emptive Adjustment

At the process diagnostics level, real-time feedback is provided based on digital twin technology, followed by adaptive control according to the standard requirements for the target part.

Operators build a digital twin model with online inspection data.

The model analyzes and forecasts subsequent operating states using real-time measured data.

For example, the digital twin may predict a high risk of machine vibration under the current milling parameters.

Operators send digital signals. These signals control the machine tool 5–10 ms in advance.

Operators dynamically adjust the milling spindle speed. They also apply reverse damping to the milling machine through active piezoelectric brakes.

This measure suppresses vibrations before they develop.

3. Real-Time Control: Iterative Learning for Near-Zero Error Compensation

In terms of real-time control, iterative learning is used to effectively control repeatability errors during the machining of micro-parts.

The machining trajectories of the first batch of parts are rigorously recorded, and the errors in the final results are precisely measured.

Based on this data, an error function is constructed to provide compensation during the machining of subsequent parts.

The system carries out error compensation on multiple parts. This process supports iterative learning. Engineers extend this workflow.

The system finally achieves near-zero error compensation through real-time control. It effectively improves part stability.

  • Data-Driven Optimization of Process Parameters

Process parameter optimization is a critical step in the machining of micro-parts.

Engineers often depend on their experience and trial-and-error methods in traditional workflows. Data-driven technologies operate differently.

They optimize micro-part machining parameters. They use intelligent learning and adaptive optimization to complete this work.

By combining response surface modeling with experimental design, we analyze the characteristics of different materials.

The authors build a process parameter space. They carry out simulation experiments.

They use response surface modeling and construct multidimensional nonlinear models.

These models describe relationships between process parameters, surface roughness, material density, and production efficiency.

Based on the actual conditions of part machining, we precisely define multi-objective targets.

Researchers deploy machine learning to realize adaptive machining. They embed edge computing modules at the front end of CNC machines to build machine learning models.

Take predictive modeling as an example. Deep learning models analyze infrared temperature and acoustic emission features of the workpiece through adaptive process learning.

The system calculates tool wear value (VB) based on real-time tool conditions.

It automatically triggers a tool-change alarm once VB exceeds the preset threshold.

In addition, researchers conduct end-to-end optimization by integrating process steps.

Hybrid machining innovations for micro-parts require seamless coordination between computer-aided manufacturing and motion execution systems.

By analyzing quality data from CNC micro-milling, the parameters of the preceding 3D-printed models are optimized.

During this process, process parameter algorithms undergo iteration, and the optimal solution for print parameter combinations is achieved through industrial practice.

  • Integrated Manufacturing of Complex Structures and Functions

The core objective of the innovative hybrid process combining CNC micro-milling and 3D printing is to enable open-ended design, while overcoming the limitations of traditional micro-part machining through process integration.

First, the process is completed in a single operation by embedding heterogeneous flow channels and electronic packaging templates into the structure.

First, the metal matrix is printed using SLM technology, simultaneously forming conformally wound cooling channels with polygonal cross-sections.

Subsequently, without changing the workpiece clamping, high-temperature laser perforation is used to directly machine outlet holes at the intersections of the channels.

Finally, CNC micro-milling is employed to refine the aerodynamic surfaces and assembly surfaces of the blades.

The entire process is integrated into a single operation, and the positional relationship between the flow channels and the workpiece’s external contour remains consistently stable.

Second, continuous additive manufacturing combined with localized finishing is applied to functional composite parts.

Operators use 3D printing units. They manufacture micro-parts with continuously changing microstructures and chemical compositions.

One example is transition structures from pure titanium to titanium-based composites.

In this process, hybrid manufacturing plays a critical role.

Operators first fine-tune part geometries with the CNC micro-milling unit. They then adopt laser-assisted precision milling.

This method effectively avoids machining defects from unstable material properties.

It further guarantees intact gradient surfaces on the part. It also secures strong connections between these surfaces.

Equipment Design Based on the Integration of CNC Micro-Milling and 3D Printing Processes for Micro-Part Machining

  • Hardware Design: Design of a Composite Collaborative Platform

The hardware design structure of the hybrid process equipment follows the principles of intelligence and modularity.

By configuring the functions of different modules, the core design of the functional hardware is realized.

1. Core Motion System

A composite layout is established comprising “independent X/Y/Z/A/C motion of the CNC micro-milling unit — Z-axis motion of the 3D printing unit — and a shared work platform.”

The work platform itself is embedded with nanometer-level linear encoders, which can calibrate the final measurement reference for repeatability and positional accuracy.

The motion states of the micro-milling and printing units are dynamically adjusted based on encoder feedback.

2. “Integrated Temperature Control and Vibration Suppression”Design

To effectively address the shortcomings of traditional worktable materials, synthetic or natural granite is used for the machine tool bed, into which high-precision cooling channels are embedded and filled with a 50:50 water-ethylene glycol coolant mixture.

The worktable is then subjected to precise temperature control via a semiconductor cooler, effectively eliminating fluctuations in ambient temperature.

Engineers must install a composite material vibration-isolation layer.

They place this layer between the motor module of the CNC micro-milling unit and the machine bed.

This layer isolates low-frequency vibrations. These vibrations transmit from the workshop floor.

3. Auxiliary Function Modules

Integrate the quality monitoring module with the powder management module.

Install a high-frame-rate industrial-grade camera and a thermal imaging device at the head of the printing unit to perform rapid scans as the printing unit completes each layer.

By comparing the scanned data with the ideal slices defined in the model design, the system accurately identifies quality defects and, through intelligent design, triggers localized repair procedures to address them.

At the same time, an integrated management system for powder supply, recovery, screening, and drying is deployed throughout the entire motion cycle of the printing unit.

Operators screen powder to match material specifications.

They transport the qualified powder to the powder supply cylinder through pre-installed inert gas pipelines.

This system keeps oxygen content below 50 ppm during the whole process. It avoids material waste from oxidation reactions.

  • Software Design: Software Systems and Intelligent Decision- Making Center

Software systems are at the core of hybrid industrial equipment design, encompassing both software programming and the design of an intelligent decision-making center.

First is the deployment of a process planning engine.

Researchers integrate existing micro-part machining practices with practical requirements to develop a software system covering the full workflow from “conceptualization” to “materialization.”

This system highly integrates multiple modules, including intelligent-assisted design, additive manufacturing simulation, industrial milling simulation, path planning, and adaptive coding.

Designers need only input the target model and macro-level requirements;

The system will then automatically complete the entire closed-loop process — from printing to milling to code generation. Second is the adaptive CNC kernel.

Traditional CNC equipment runs code in a single fixed mode. Adaptive CNC systems work differently.

They collect signals and feedback data from sensors and intelligent modules in real time.

Operators use this data to schedule tasks scientifically. The scheduling matches actual machining requirements for the part.

For example, when the system detects a localized printing defect (such as a minor indentation), it generates code simultaneously.

Operators transmit this code to the CNC kernel through high-speed cables deployed on-site.

The CNC center pauses tool movement within an extremely short timeframe and prioritizes the “fill indentation” program.

Once operators complete this program, the tool resumes the original path.

Thanks to the adaptive kernel’s precise control, the process delay is kept within 1–5 ms.

Conclusion

Researchers combine CNC micro-milling and 3D printing to drive process innovation.

This integrated method satisfies practical needs. It delivers new machining standards for micro-parts in many high-precision, cutting-edge fields.

It also follows the inevitable trend of China’s Industrial Informatization 4.0 development.

At the same time, given the rapid advancement of artificial intelligence (AI) technology, future efforts to innovate through process integration should explore the integration of AI algorithms with micro-part machining processes.

By leveraging AI algorithms to achieve adaptive parameter optimization, we can provide a solid structural and material foundation for the development of China’s high-tech sectors.

Table of Contents

Let's Start A New Project Today
Get A Quote
