Reducer Housing Machining Optimization: Improving CNC Accuracy, Stability, and Production Efficiency

As mechanical equipment evolves toward higher precision and reliability, the structural design and machining quality of reducer housings increasingly influence overall machine performance.

Traditional processes suffer from issues such as significant clamping errors, fragmented machining routes, and unstable parameter control, which constrain product accuracy and production efficiency.

To address this, a targeted process optimization plan was developed through systematic analysis of housing structural characteristics, machining routes, critical processes, and fixture design.

The scope of this research encompasses the unification of machining benchmarks, the matching of process parameters, and improvements to fixture rigidity.

Combined with trial production and performance testing, a quantifiable verification system has been established.

This system provides technical support for the high-precision manufacturing of reducer housings.

It also offers practical process guidelines for achieving consistent manufacturing quality.

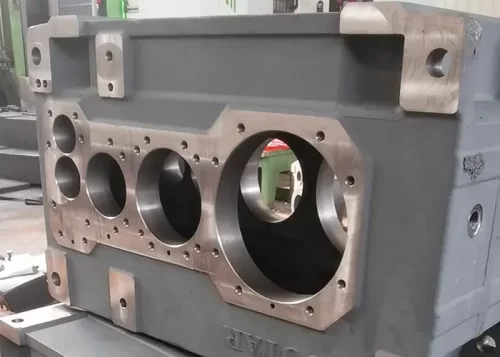

Principles of Reducer Housing Structure

As a critical foundation component for bearing and transmitting power, the structural design of the reducer housing directly determines the installation precision and operational stability of the transmission system.

The housing typically adopts an integral cast structure, primarily composed of a base, end covers, reinforcing ribs, and bearing bores.

Internal features include mounting bores for the input and output shafts along with lubrication passages, ensuring stable and continuous torque transmission.

Loads transmitted from the input shaft generate tangential, radial, and axial forces through gear meshing.

These forces act upon the housing’s support regions, creating complex three-dimensional force coupling states that induce localized structural deformation and bore misalignment.

• Equivalent Structural Model for Mechanical Analysis

To analyze structural response characteristics, key areas can be simplified into an equivalent beam model (Figure 1).

Concentrated loads generated at gear meshing points are transmitted through bearings to the housing walls.

The support section exhibits maximum axial deflection, significantly affecting bore alignment and transmission stability.

• Deflection Calculation Model

Under simplified conditions, its maximum deflection can be calculated using the following formula:

In the formula: F represents the bearing force; L denotes the length of the force arm; E signifies the material’s elastic modulus; I indicates the sectional moment of inertia.

• Influence of Structural Stiffness on Machining Accuracy

This model reflects that structural stiffness is jointly governed by material properties and geometric shape.

Insufficient stiffness will cause reference drift, affecting the stability of the process accuracy chain.

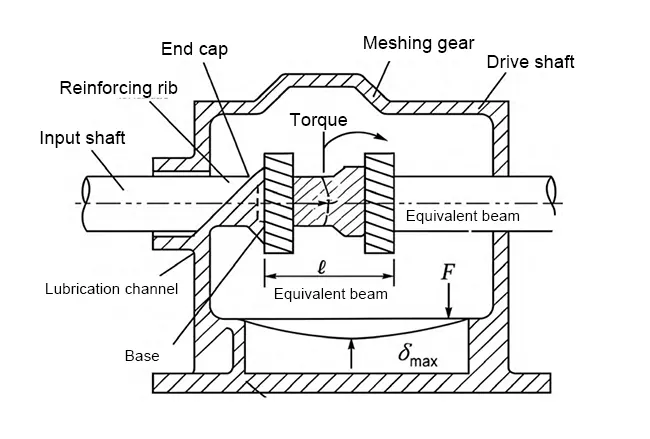

In the figure, F represents the resultant force generated by gear meshing.

Its point of application is located near the gear contact line, transmitting a concentrated load to the housing through the bearing housing.

Under load, the housing deflects along the direction of the lever arm L, causing slight misalignment between the drive and driven shaft bore axes and thereby affecting bore system concentricity.

• Role of Reinforcing Ribs and Weak Point Identification

The ribbed area enhances local stiffness, and its placement directly influences the sectional moment of inertia I, playing a crucial role in controlling deflection δ.

The marked typical weak points and stress paths in the figure can be used to identify regions prone to reference drift during machining.

This provides a basis for subsequent planning of fixture support point layouts, reference unification strategies, and process compensation methods.

Optimization Design of Machining Process Specifications

• Process Route Optimization

During the machining of gearbox housings, the original process route suffered from issues such as excessive clamping operations, unreasonable machining sequences, and inconsistent reference points.

These directly led to deviations in hole system coaxiality and reduced surface precision .

To enhance machining consistency and production efficiency, the original process route was redesigned and validated.

The optimized solution centered on “unified benchmarks, reduced clamping, and layered roughing/finishing.”

By integrating machining operations and adjusting processing sequences, it achieved process intensification and minimized error propagation.

Key process metrics before and after optimization are compared in Table 1.

Table 1. Comparison Before and After Process Route Optimization

As shown in Table 1, the optimized process route achieves significant improvements across multiple key metrics.

Fixture changes are reduced by 50%, effectively eliminating cumulative errors caused by repeated repositioning.

Spindle bore concentricity was reduced from 0.035 mm to 0.018 mm, representing a precision improvement of nearly 49%.

In addition, the single-piece machining time decreased from 68 minutes to 55 minutes.

This change boosted machining efficiency by approximately 19%.

Furthermore, the machining pass rate increased from 93.5% to 98.2%, reflecting significantly enhanced process stability.

The data demonstrates that rational process route optimization can significantly improve dimensional accuracy and surface quality.

It also yields notable comprehensive benefits in production cycle time and cost control.

• Optimization of Critical Processes

The key processes for gearbox housings primarily include boring the main shaft bore and driven shaft bore, finishing the bottom surface, and corrective machining of the support hole system.

The machining quality of these areas directly impacts assembly accuracy, transmission smoothness, and overall machine noise levels.

The original process employed separate clamping operations for the drive and driven shaft bores, resulting in frequent changes of locating references and significant coaxiality errors and hole spacing deviations.

The optimized approach integrates both bore machining into a single clamping setup.

By establishing a unified locating reference and introducing simultaneous dual-hole boring, machining accuracy is substantially enhanced.

This method utilizes specialized locating fixtures and precision guide bushings to ensure consistent hole-to-shaft alignment during machining, fundamentally reducing cumulative clamping errors.

For the bottom surface finishing stage, a CNC vertical machining center replaced traditional horizontal milling.

Programmed tool path control and constant cutting load achieved stable control of flatness and surface roughness.

A high-pressure cooling system is integrated to minimize temperature fluctuations in the cutting zone.

At the same time, optimized tool geometry reduces cutting forces.

This helps prevent localized unevenness caused by thermal deformation.

To address tool wear and dimensional variations in hole system machining, coated carbide boring tools are employed.

In addition, online measurement and correction technology is used.

This allows real-time dimensional compensation during the machining process.

The comprehensive optimization significantly improved the coaxiality of the spindle bore and enhanced the flatness of the bottom surface.

It also reduced the single-piece processing time and extended tool life.

As a result, both production cycle times and assembly accuracy were systematically improved.

This provides a robust machining foundation for subsequent process stability validation.

• Process Parameter Optimization

In gearbox housing machining, the rational matching of cutting parameters directly impacts surface quality, tool life, and machining stability.

The original process parameters were primarily set based on experience, with excessively high cutting speeds and feed rates.

This led to accelerated tool wear, increased cutting temperature rise, resulting in hole diameter expansion and worsened surface roughness.

During optimization, cutting speed, feed rate, and depth of cut were systematically adjusted based on material properties, machine rigidity, and tool type.

Analysis of the relationship between cutting forces and temperature revealed that cutting heat most significantly impacted dimensional accuracy.

Therefore, temperature rise control became central to parameter optimization.

A moderate cutting speed combined with a low feed rate and high-pressure cooling was selected to achieve stable cutting conditions.

Cutting speed is calculated using the following formula:

Where: V is the cutting speed (m/min); D is the tool diameter (mm); n is the spindle speed (r/min).

By comparing trial cutting results under different parameter combinations, an optimal condition was identified.

When (D = 40) mm and (n = 1200) r/min, the cutting speed is approximately 150 m/min.

Under these conditions, the average surface roughness (Ra) decreased to 0.8 μm.

At the same time, tool wear was reduced by approximately 30%.

The optimized feed rate was controlled within 0.08 mm/r, while the cutting depth was maintained at 0.3 mm, effectively preventing vibration and deformation caused by sudden increases in cutting force.

• Fixture and Tooling Optimization

The clamping process of the reducer housing significantly impacts overall machining accuracy, particularly during spindle bore boring and bottom surface finish milling.

The uniformity of force distribution within the fixture structure directly determines the coaxiality of the hole system and the parallelism of the reference surface.

The original fixture employed unidirectional clamping and fixed support.

Under cutting loads, this setup often caused localized warping and slight displacement of the housing.

As a result, errors in the hole system increased.

To address this, the optimized solution redesigned the fixture structure.

Adjustable support points were added to the bottom to compensate for housing unevenness.

In addition, V-shaped locating blocks and dual-side guide supports were incorporated.

These modifications enhanced overall clamping stability.

The clamping method was changed from mechanical thread locking to hydraulic bidirectional clamping.

By evenly distributing force, deformation caused by unilateral pressure is avoided.

A balance between rigidity and flexibility is maintained between the support and clamping systems, thereby improving positioning repeatability.

To determine the mechanical requirements of the clamping system, the clamping force must satisfy the following equation:

In the formula: F represents the required clamping force; P represents the cutting force; μ represents the coefficient of friction.

Based on measurements from the spindle bore boring test, the maximum cutting force is approximately 450N.

With a friction coefficient of 0.15, the calculated clamping force is no less than 3000N.

The hydraulic system employs pressure-limiting control and a buffer circuit design to prevent impact loads during clamping initiation.

The fixture base is fabricated from quenched and tempered 45 steel to ensure overall rigidity.

Contact surfaces undergo precision grinding and incorporate adjustable pressure-sensitive elastic elements to accommodate minute deformations.

Optimized Solution Validation

• Pilot Production Process Validation

To evaluate the adaptability and stability of the optimized process under actual production conditions, a full-process pilot production was conducted.

Standard box blanks that had undergone heat treatment and aging treatment were used in this trial.

The pilot production was completed in a temperature-controlled environment.

Workpieces underwent pre-positioning and dynamic balancing correction prior to machining to ensure consistent clamping conditions.

The trial production focused on evaluating dimensional accuracy between processes.

It also assessed the stability of the machining system.

The objective was not merely to replicate laboratory-based process parameter verification.

The machining process employed an automatic probe for identifying positioning references.

Combined with a spindle dynamic monitoring system, the process recorded torque fluctuations and cutting load variations in real time.

This data was used to assess the compatibility between fixture forces and machine tool rigidity.

During prototyping, multiple rounds of intermittent inspections were conducted on the spindle bore, assembly reference surfaces, and critical hole spacing.

Each batch of samples underwent verification at both the mid-processing stage and final inspection.

The results demonstrated that dimensional drift was controlled within ±0.006 mm during prolonged continuous machining.

Clamping repeatability deviation was kept below 0.01 mm.

In addition, the cutting temperature rise remained stable within 45 °C.

Surface texture remained uniform with no signs of plastic tearing or chatter marks, indicating controlled cutting forces and thermal deformation.

Tool wear exhibited uniform blunting without micro-chipping, while coolant flow and pressure remained stable.

The entire trial run demonstrated the machining system’s robust dynamic consistency under multi-variable disturbances.

It confirmed the stability of the optimized process under actual production loads and long-term operational conditions.

• Machinability Testing

Following prototype completion, systematic machinability testing was conducted on the reducer housing to validate the optimized process’s dynamic performance under actual machining conditions.

Testing focused on key metrics including spindle cutting force, vibration response, thermal distribution, and surface quality.

Three XHK-50 horizontal machining centers were employed to perform parallel machining on HT250 gray cast iron housings from the same batch.

Real-time data acquisition utilized triaxial force sensors, infrared thermal imaging cameras, and an online probe system.

To ensure comparability, both the original and optimized processes were conducted under identical ambient temperatures and tooling conditions.

Spindle speed was maintained at 1200 r/min throughout testing, with feed rate set to 0.08 mm/r.

Performance data were averaged from multiple measurements, with results presented in Table 2.

Table 2. Comparison of Measured Data from Machining Performance Tests

• Results Analysis

Following synchronous analysis and parameter comparison of machinability test data, quantitative processing was carried out.

The analysis focused on mechanical load characteristics, thermal field distribution, vibration spectrum, and dimensional stability.

Cutting force signals exhibited stable fluctuations in the time domain.

Under the optimized process, the peak primary cutting force decreased by approximately 70 N.

The waveform cycles became more uniform, and the peak-to-peak intervals were more concentrated.

These results indicate sustained stable tool–workpiece contact conditions.

Vibration signals analyzed via Fast Fourier Transform revealed peak energy concentrated around 280Hz—a significant shift downward from the original process’s 340Hz.

High-frequency harmonic amplitudes decreased by nearly 40%, indicating improved matching of system dynamic stiffness and damping.

Temperature monitoring revealed that the peak heat in the cutting zone occurred during the cutting initiation phase and rapidly stabilized over time.

The temperature rise curve maintained a constant slope after 10 seconds of machining, indicating stable heat conduction pathways and controllable heat accumulation.

Multivariate correlation analysis was conducted on surface roughness and tool wear data.

The results revealed a linear correlation coefficient of 0.91 between Ra and wear band width.

This finding confirms that tool wear directly impacts surface morphology stability.

Statistical processing was conducted on the dimensional inspection results.

The standard deviation of hole diameter fluctuation was controlled at 0.0028 mm.

The flatness error standard deviation was 0.0031 mm.

Both parameters exhibited normal distribution characteristics.

Inter-process dimensional transfer relationships remained stable.

A joint analysis of machining signals and geometric data revealed that the optimized cutting system achieves a balance among cutting force, thermal effects, vibration, and geometric accuracy.

The synergistic response relationships among parameters remain stable, maintaining high consistency control throughout the entire machining process.

Conclusion

Through systematic optimization of the gearbox housing’s structural characteristics, machining routes, critical processes, and process parameters, an improved manufacturing approach was developed.

As a result, a manufacturing system centered on unified benchmarks, path consolidation, and fixture rigidity control has been established.

Prototype production and performance testing validated the machining process’s coordination in mechanical, thermal, and dynamic stability, achieving a balance between high precision and high consistency.

This research provides a replicable manufacturing approach for complex housing components.

Future work may integrate machining data modeling and dynamic monitoring technologies to further refine intelligent process control and stability prediction mechanisms.
