CNC (Computer Numerical Control) machining is the backbone of precision manufacturing, providing the accuracy, speed, and scalability required in today’s most demanding industries.

Sectors such as aerospace, medical device manufacturing, automotive, electronics, and defense rely heavily on CNC machining to create components with tight tolerances and complex geometries.

A thorough, step-by-step understanding of the CNC machining process is crucial for engineers, designers, and procurement specialists.

This knowledge helps reduce costs, shorten lead times, and minimize design risks by optimizing part manufacturability and avoiding common pitfalls.

This guide details the entire CNC machining process: from digital design to finished part, key decisions at every stage, best practices, and pitfalls to avoid.

Whether you’re sourcing parts or refining your designs, understanding these steps can lead to more successful manufacturing outcomes.

---

What Is the CNC Machining Process? (Quick Overview)

CNC machining is a subtractive manufacturing process in which computer-controlled machines remove material from a solid workpiece to create a desired part shape.

In subtractive manufacturing, unlike additive processes such as 3D printing, material is precisely cut away using tools like mills, lathes, or routers.

The workflow starts with a digital CAD (computer-aided design) model, which is converted into a machine-readable code (G-code) and executed by CNC equipment to produce the physical part.

Typical Tolerances and Repeatability:

• CNC machines can routinely achieve tolerances as tight as ±0.005″ (±0.13 mm), with repeatability as high as ±0.001″ (±0.025 mm) depending on the machine and process (source: Modern Machine Shop, 2023).

How CNC Differs from Manual Machining and 3D Printing:

• CNC machining is automated, highly precise, and capable of complex geometries, while manual machining relies on operator skill and is less repeatable.
• 3D printing builds parts layer by layer (additive), whereas CNC removes material (subtractive), typically resulting in superior surface finishes and higher tolerances.ProcessMaterial ApproachAutomationTypical ToleranceApplicationsCNC MachiningSubtractiveFully Automated±0.001″–0.005″Aerospace, Medical, AutomotiveManual MachiningSubtractiveManual/Operator±0.010″–0.030″Prototyping, Low-volume3D PrintingAdditiveAutomated/Semi±0.005″–0.020″Prototyping, Complex Shapes

This overview sets the stage for a deeper dive into each step of the CNC machining process in the sections that follow.

Step-by-Step CNC Machining Process

Step 1: CAD Design & Engineering Preparation

The CNC machining journey begins with creating precise digital part models. Engineers use 2D or 3D CAD (Computer-Aided Design) software, with 3D models offering clearer visualization of complex geometries and assemblies.

Critical Design Inputs:

• Dimensions and Tolerances: Every feature must be dimensioned, often with tolerances as tight as ±0.001” (0.025 mm) for high-precision parts.
• Surface Finish Requirements: Specifying finishes (e.g., Ra 1.6 μm for aerospace) impacts machining strategy and cost.
• Threads, Holes, Internal Features: Callouts for threads, tapped holes, and internal cavities must be detailed.

Design for Manufacturability (DFM):

• Ensure adequate tool access; avoid features that standard cutters can’t reach.
• Minimize deep pockets and undercuts, which require special tooling and increase cycle time.
• Optimize geometry for fewer setups—simple parts are faster and cheaper to machine.
• Common Mistakes That Increase Cost: Sharp internal corners, excessive tolerances, and unnecessary undercuts can raise machining costs by 20–40% (source: Protolabs DFM Guide, 2023).

Pro Insight: Poor DFM not only adds cost but can delay production and increase scrap rates. Consulting with manufacturing engineers early reduces these risks.

---

Step 2: CAM Programming & Toolpath Planning

Once the CAD model is ready, it’s imported into CAM (Computer-Aided Manufacturing) software to generate the toolpaths—the machine’s instructions for cutting.
Toolpath Strategy Selection:

• Roughing vs. Finishing: Roughing removes bulk material quickly; finishing achieves final dimensions and surface quality.
• Adaptive Clearing & High-Speed Machining: Advanced strategies optimize tool engagement, reduce cycle time, and extend tool life.

Cutting Parameters:

• Feed Rate: How fast the tool moves through the material.
• Spindle Speed: Rotational speed of the tool.
• Depth of Cut: How deep each tool pass goes.

Simulation and Collision Detection: CAM software simulates the toolpath to catch errors or collisions before machining.

Post-Processing: The final toolpaths are converted (“post-processed”) into machine-specific G-code.

---

Step 3: CNC Machine Selection & Setup

Choosing the right machine and setup is crucial for quality and efficiency.
Machine Types:

• 3-Axis, 4-Axis, 5-Axis: More axes enable machining of complex shapes in fewer setups.
• Mill, Lathe, or Mill-Turn Center: Each is suited to different part geometries.

Workholding and Fixturing:

• Vise, Fixture, Soft Jaws: Secure the workpiece for accurate machining.
• Tool Selection and Presetting: The correct tools must be chosen and measured for length/offsets.
• Coordinate System Setup (Work Offsets): Accurate part zeroing is essential for precision.

Why Setup Accuracy Matters: Setup errors propagate through production, affecting every subsequent part. Precision setup is vital for repeatability.

---

Step 4: CNC Machining Operations Execution

Now, the machine removes material according to the programmed toolpaths.
Automated Material Removal:

• CNC machines use coordinated axis motion to cut complex shapes.

Machining Stages:

• Roughing: Quick removal of excess material.
• Semi-Finishing: Prepares for final pass.
• Finishing: Achieves final size and surface quality.

Coolant and Thermal Control: Coolant systems prevent overheating, ensuring dimensional stability.
Real-Time Monitoring:

• Sensors track tool wear, vibration, and dimensional drift, minimizing defects mid-process.

---

Step 5: In-Process Quality Control

Inspection begins while machining is still underway.
Techniques:

• Machine Probes: Measure features and adjust toolpaths automatically.
• In-Process Measurement: Ensures tolerance is maintained throughout production.
• Controlling Tolerance Drift: Early detection prevents costly scrap.

---

Step 6: Final Inspection & Quality Assurance

After machining, parts undergo rigorous final checks.
Inspection Methods:

• Coordinate Measuring Machines (CMM): High-accuracy dimensional inspection.
• Optical/Surface Finish Inspection: Ensures visual and functional quality.
• First Article Inspection (FAI): Confirms the process before full production.
• Documentation & Traceability: Critical for regulated industries (aerospace, medical, automotive).

---

Step 7: Finishing, Post-Processing & Delivery

Parts receive final touches before shipment or assembly.
Processes:

• Deburring/Edge Finishing: Removes sharp edges and burrs.
• Surface Treatments: Anodizing, plating, and heat treatment enhance function and appearance.
• Cleaning, Packaging, and Protection: Ensures parts arrive contamination-free and undamaged.

Each step in the CNC machining process is essential for producing high-quality, cost-effective components that meet demanding industry standards.

Visual Summary: CNC Machining Process Flow

The CNC machining process follows a precise, linear flow: it starts with CAD design and engineering preparation, moves through CAM programming and toolpath planning, then progresses to machine selection and setup.

Once the setup is complete, machining operations are executed, followed by in-process quality control, final inspection, and post-processing before the finished parts are delivered.

This streamlined sequence ensures accuracy, efficiency, and consistent quality at every stage.

Infographic/Flowchart Suggestion: A simple flowchart or infographic can visually represent this process:

1. CAD Design →
2. CAM Programming →
3. Machine Setup →
4. Machining Operations →
5. In-Process QC →
6. Final Inspection →
7. Finishing & Delivery

This type of visual is ideal for sharing and backlinking to your guide.

---

Common CNC Machining Operations Used in the Process

Machining encompasses several core operations:
CNC Milling:

• 3-axis milling for basic shapes and flat surfaces.
• 4-axis milling allows work on multiple faces without repositioning.
• 5-axis milling enables complex, multi-angle features and undercuts, reducing setups and increasing part complexity.

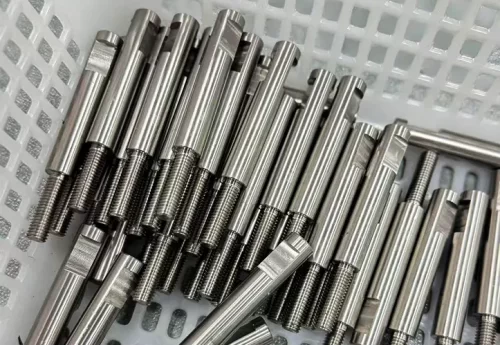

CNC Turning and Mill-Turn:

• Turning (lathe operations) is ideal for creating cylindrical parts.
• Mill-turn combines milling and turning for parts needing both.

CNC Drilling and Hole-Making:

• Used for precise hole placement and tapping, often integrated into milling or turning cycles.

When Each Operation Is Used:

• Milling is typically used for prismatic (blocky) parts and complex geometries.
• Turning applies to shafts, bushings, and round components.
• Drilling is a universal step for most part types.
• Mill-turn is chosen when parts require both milled and turned features for efficiency.

---

Used at Different Process Stages

CNC Milling Machines:

• Used for most prismatic parts; handle most milling, drilling, and some tapping.

CNC Lathes:

• Handle turning operations and are optimal for round or cylindrical parts.

5-Axis Machining Centers:

• Allow for machining complex geometries in a single setup, improving accuracy and reducing lead time.

Swiss-Type Lathes:

• Specialized for producing small, high-precision components, often used in medical or electronics industries.

How Machine Choice Affects the Process:

• The more advanced the machine (e.g., 5-axis), the fewer setups required, improving accuracy and lowering cumulative error.
• Specialized machines like Swiss-type lathes offer unmatched precision for small parts but may be slower or more costly for large features.
• Machine capabilities directly impact achievable tolerances, speed, and overall part cost.

---

Materials and Their Impact on the CNC Process

Metals:

• Aluminum: Easy to machine, excellent for prototypes and automotive/aerospace parts.
• Steel & Stainless Steel: Strong and durable, require slower machining and robust tooling.
• Titanium: Lightweight and strong, but challenging to machine and increases wear on tools.

Plastics:

• ABS, PEEK, Nylon, Acrylic: Lightweight, non-conductive, and often used for medical, electronic, or prototype parts. Each has unique machinability considerations (e.g., melting point, rigidity).

How Material Choice Affects the Process:

• Tool Selection: Harder materials require carbide or coated tools; plastics need sharper, less aggressive tools.
• Cutting Strategy: Softer materials allow faster feeds and speeds; tougher materials need slow, steady passes.
• Machining Time: Machining harder materials takes longer and increases tool wear.
• Final Tolerances: Some materials (like certain plastics) are harder to hold tight tolerances due to thermal expansion or flexibility.

---

The Role of CNC Machinists in a Highly Automated Process

Despite high automation, skilled CNC machinists are essential for:

• Programming Expertise: Translating designs into optimized machine instructions.
• Setup and Calibration: Ensuring machines are properly aligned and tools are set for precision.
• Process Monitoring: Observing real-time machining to detect tool wear, vibration, or unexpected issues.
• Optimization: Adjusting parameters for better quality, speed, and tool life.
• Human Decision-Making: Overseeing the process, troubleshooting, and ensuring that automation delivers the desired results.

CNC machinists bridge the gap between digital automation and real-world manufacturing success.

Common CNC Machining Process Challenges (and How to Avoid Them)

• Poor DFM Leading to Rework: Inadequate design for manufacturability (DFM) results in features that are difficult or costly to machine, often causing rework or delays. Early collaboration with machinists and using DFM guidelines can prevent this.
• Tool Wear and Chatter: Excessive tool wear or vibration (chatter) impacts surface finish and dimensional accuracy. Selecting the right tooling, optimizing speeds/feeds, and monitoring tool condition reduces these risks.
• Thermal Expansion Issues: Heat generated during machining can cause part distortion, especially in metals. Using coolants, optimizing cutting parameters, and allowing parts to cool before final finishing help maintain tolerances.
• Inadequate Fixturing: Poor workholding leads to movement and dimensional errors. Investing in appropriate fixtures or soft jaws, and verifying workpiece stability before machining, is crucial.
• Communication Gaps: Misunderstandings between design and manufacturing teams can result in unclear requirements or overlooked details. Detailed documentation, proactive DFM reviews, and clear communication channels are essential.

Choose CNC Machining

When CNC is the Best Choice:

• Need for high precision, tight tolerances, and material flexibility
• Prototyping to medium-volume production (10–10,000 parts)
• Parts with complex geometries, especially in metals

When CNC is Not the Best Choice:

• Ultra-high-volume plastic parts (injection molding is more economical)
• Highly intricate internal geometries (3D printing may be superior)

---

Industries That Rely on the CNC Machining Process

• Aerospace and Aviation: Structural components, engine parts, brackets, and housings
• Medical Devices and Implants: Surgical instruments, orthopedic implants, dental components
• Automotive and EV Components: Engine parts, battery housings, custom brackets
• Electronics and Precision Housings: Enclosures, heat sinks, connectors
• Defense and High-Reliability Systems: Firearms, optical mounts, missile and radar components

---

Why the CNC Machining Process Enables Scalability

• Prototyping to Low-Volume Production: Quick-turn CNC shops can deliver prototypes in days, then scale to low-volume runs without major tooling changes.
• Bridge Production: CNC is ideal for bridging the gap between prototyping and full-scale production (e.g., while injection molds are made).
• High-Volume Repeatability: Advanced CNC systems offer batch-to-batch consistency, meeting demanding quality standards.
• Consistent Quality: Automated controls and in-process inspection ensure every part matches the design, even in large runs.

---

How to Choose the Right CNC Machining Partner

• Engineering and DFM Support: Look for partners who review your designs and offer manufacturability feedback.
• Machine Capability Depth: A wide range of machines (3-, 4-, 5-axis, lathes) means more flexibility for complex parts.
• Quality Systems and Certifications: ISO 9001, AS9100, or medical certifications ensure robust process control.
• Lead Time Reliability: Consistent, on-time delivery is critical for your supply chain.
• Cost Transparency: Clear, upfront pricing with no hidden fees fosters trust and budget control.

---

Key Takeaways: CNC Machining Process Explained

• CNC machining offers a fully digital workflow, from CAD design to finished part.
• The process combines automation with expert machinist oversight to deliver unmatched precision and repeatability.
• Mastering each step—from DFM to final inspection—reduces cost, risk, and lead time.
• CNC machining is a long-term manufacturing solution for industries demanding quality, flexibility, and scalability.

---

Conclusion

In conclusion, understanding the CNC machining process from start to finish is key to maximizing efficiency, quality, and profitability in modern manufacturing.

Mastery of each step—from CAD design and DFM to machine selection, quality control, and final delivery—empowers engineers, designers, and manufacturers to minimize risks, control costs, and accelerate product development.

As industries continue to demand tighter tolerances, faster turnarounds, and greater flexibility, CNC machining stands out as a proven, scalable solution.

By working with the right partners and applying best practices outlined in this guide, you can leverage CNC technology for prototyping, bridge production, and high-volume manufacturing alike.

For further details, best practices, and industry insights, don’t hesitate to review reliable resources like Autodesk’s CNC machining process overview.

With the right knowledge and strategy, CNC machining can become a cornerstone of your long-term manufacturing success.
